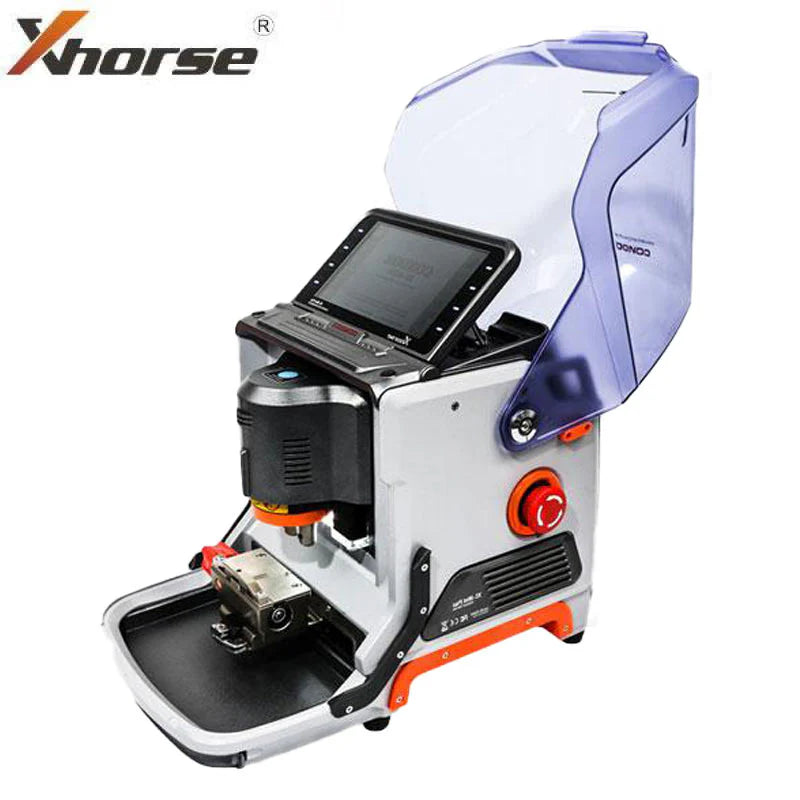

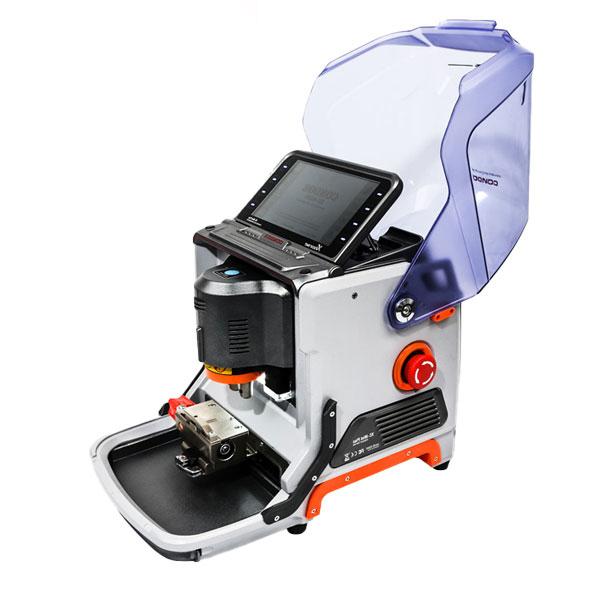

Xhorse Condor XC-Mini Plus – High Sec Key Cutting Machine (Xhorse)

Clamp Equipped

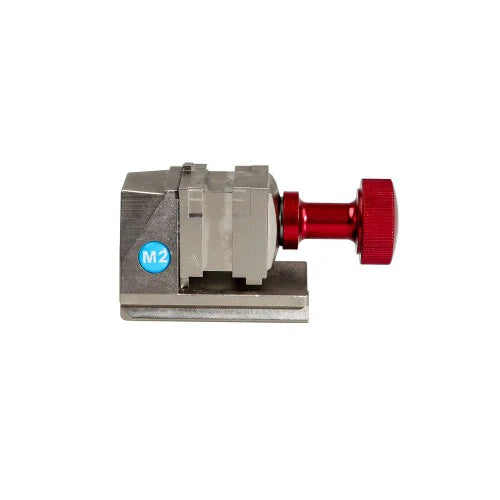

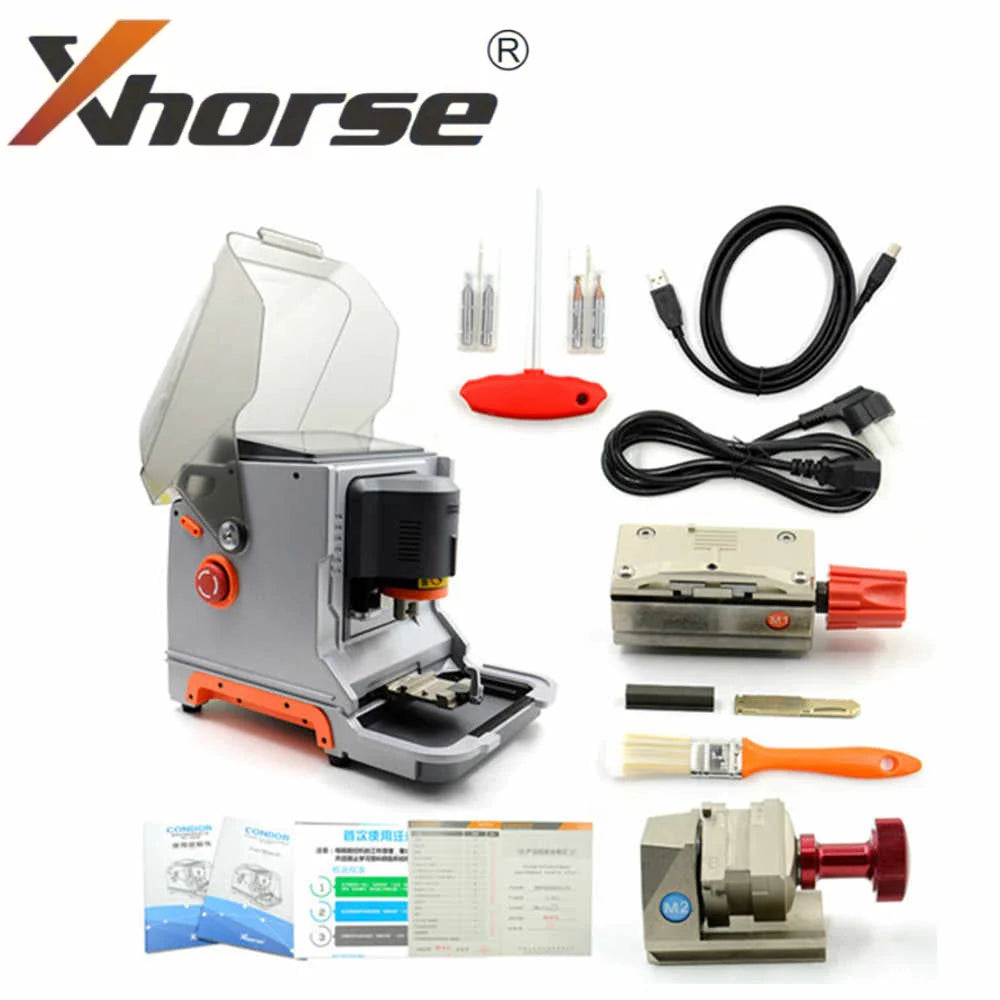

Condor XC-Mini automatic key cutting machine standardly includes two clamps M1 and M2 support sided, track,
dimple and tibbie keys, some dimple/tibbie keys need M3 optional clamps used for Ford FO21 & Citroen SX9 keys.

Built-in Database
Built-in actuate database, detailed parameters, schematic sample depth key tool available for users, according to the blank key data,
edit key shape, space flat, depth for making a new key data. It is convenient to synchronize the new key data to the machine.

Patent Certificate:
100% Genuine XHorse..no knockoffs. Condor XC-Mini Plus has an appearance Patent Certificate, computer software copyright registration Certificate, Utility Model Patent Certificate.

Essential Tool for All Key Lost
Condor Mini Plus contains three powerful functions for all keys lost key database, cut by bitting & find bitting,
an essential tool for locksmith all key lost job easier to be completed.

Improved Manufacture Process
The aluminum main body, partially made by 304 stainless steel materials. net weight 18KG is a lightweight machine with a stable structure.
The machine used 3-Axis precision Ball screw transmission with higher accuracy & stability than T screw transmission.

Xhorse Condor Mini condor Plus New Features:

• Space between the cover and key is bigger than the mini condor, fit larger size keys, for XC-MINI many keys with casings like VW flip key will not allow you to close the cover.
• The new screen is designed with an adjustable angle, easier to adjust the proper viewing angle. Many time the machine is on a higher / desk and it’s then difficult to operate and see what’s on the screen.
• Mounting support – to make it easier when mounting the machine on a Mobile unit as you don’t want it flying around in the back of your VAN….
• Multiple sealing designs to avoid debris.

Xhorse Condor MINI Plus Parameter:

• Working Temperature 0-50
• Humidity: 10-90%
• Working Voltage: 90-264V/AC
• Input Frequency: 47-63Hz
• Package Dimension: 450 x450x350mm
• Machine Dimension: 265 x362x301mm
• Net Weight: 18kg
• Gross Weight: 22.9kg
• Power: 200W
• USB port: 2.0
• LED Display:
• 1024×600
• Motor Rotation Speed: 9000rpm

Xhorse warranties non-wear parts for a period of one year from the date of purchase by the original owner. Warranty covers internal parts of the machine like the motor, motherboards etc. The warranty does not cover tablets, display, screens, cutters, decoders, key clamps or accessories. External parts and accessories are not covered by warranty
