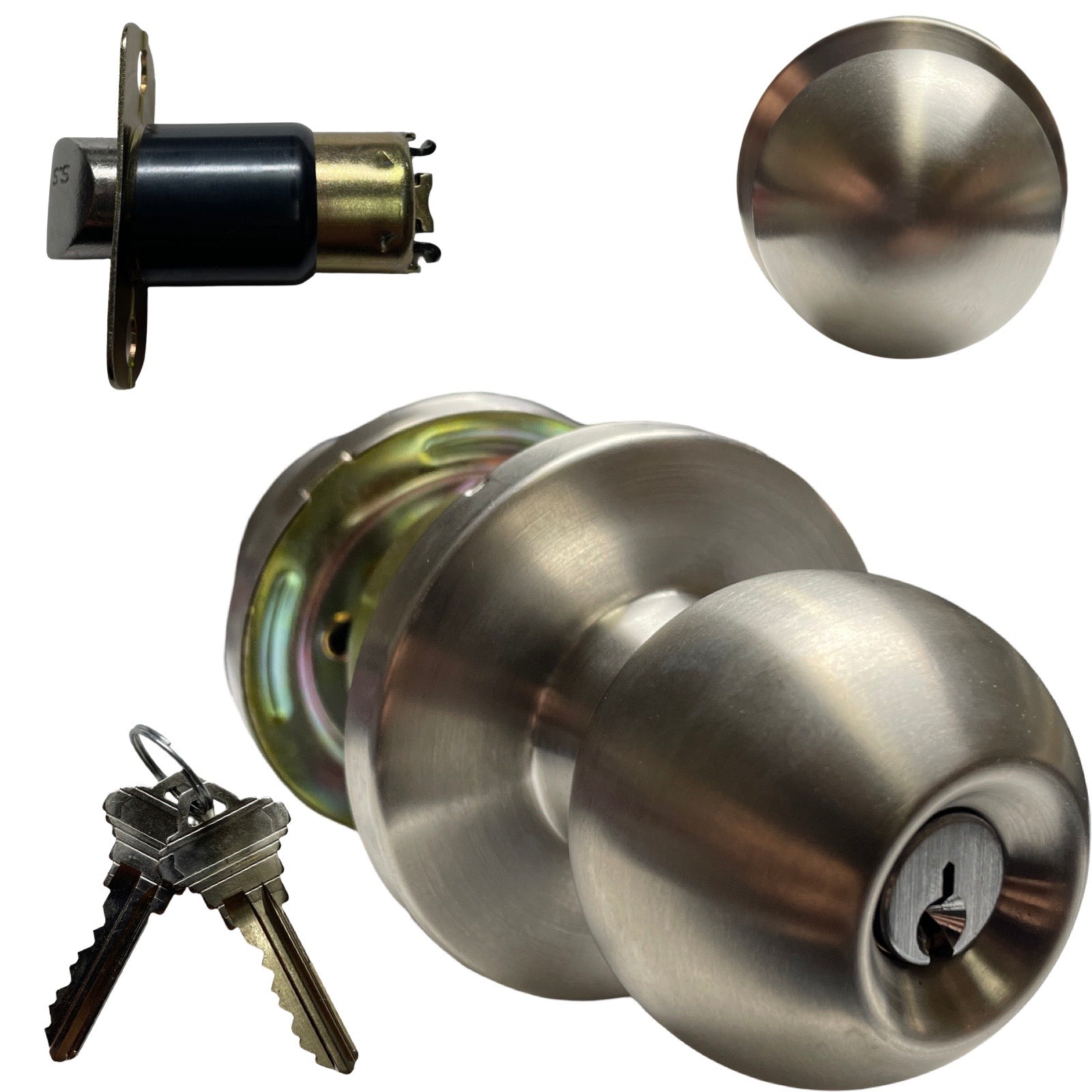

TELL - CL100031 - Heavy Duty Cylindrical Knob - Satin Stainless - 2-3/4" Backset - Grade 2 - Entrance
The KC2300 Series Empire Ball Knob is a grade 2 cylindrical, heavy duty knob in a satin stainless steel finish that can be used for entry, storeroom, privacy, and/or passage. These knobs can be used in new construction or replacement hardware fitting a standard 161 door prep.
- Description
Performance Complies with ANSI A156.2, Series 4000
Grade 2, 400,000 cycles
UL/ULC listed for 3 hour fire door
Chassis
Cylindrical
Steel - coated with zinc dichromate (corrosion resistance)
Latch 2-3/4” Backset
1” Housing diameter
1/2” Stainless steel throw
1-1/8” x 2-1/4” Square corner faceplate
Optional 2-3/8” Backset
Strike ASA Strike 1-1/4” x 4-7/8”
Optional T-Strike 1-1/8” x 2-3/4”
Optional F-Strike (full lip)
Rose 3” diameter
Cylinder SCC - C keyway
6-pin solid brass
Keyed different (KD)
Keys Two nickel silver per lock cylinder
Door Preparation 2-1/8” diameter for knob
1” diameter for latch bolt
Fits standard 161 door prep
Door Range 1-3/8” - 1-3/4”
