CompX National Cam Lock C8073-C413A-14A Bright Nickle Disc Tumbler New
Disc Tumbler Cam Locks for Doors and Drawers
90°, 180° Cam Turn, Flush or Lipped/Overlay Construction
Each lock comes with two stop washers allowing cam to turn either 90° or 180° based on application
• For drawers, right-hand or left-hand doors
• Cams included for lipped/overlay construction (straight cam; 1-1/2" extension) or flush construction (formed cam; 1-1/8" extension, 11/32" offset)
• For overlay application, the combined thickness of front and frame cannot exceed the cylinder length listed below. To accommodate an overlay construction using a 3/4" front and a 3/4" frame, order the NLC8073 lock and the NLC7014-2C cam
• Stop washers provided for both 90° or 180° cam turns
• Key removable in both locked and unlocked positions

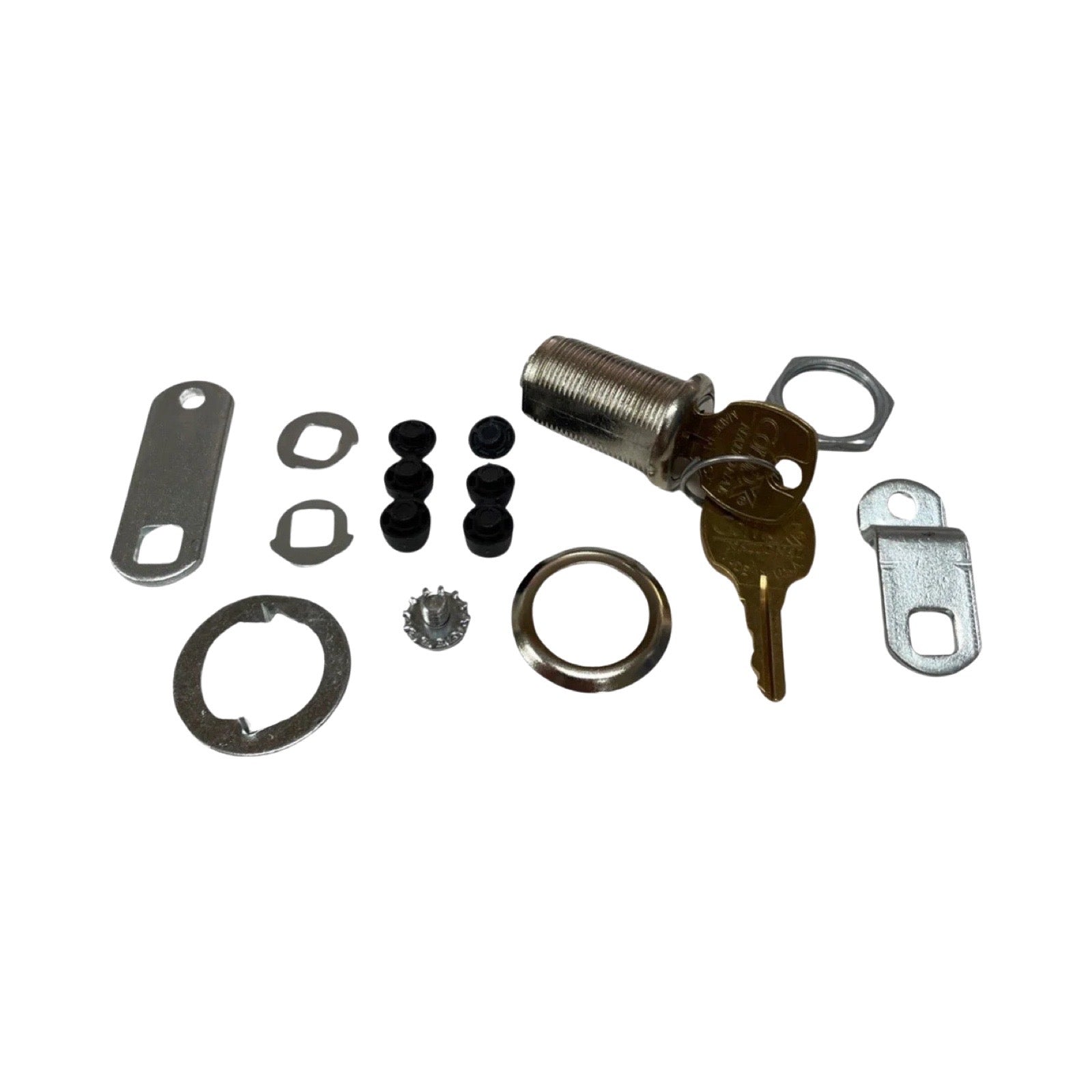

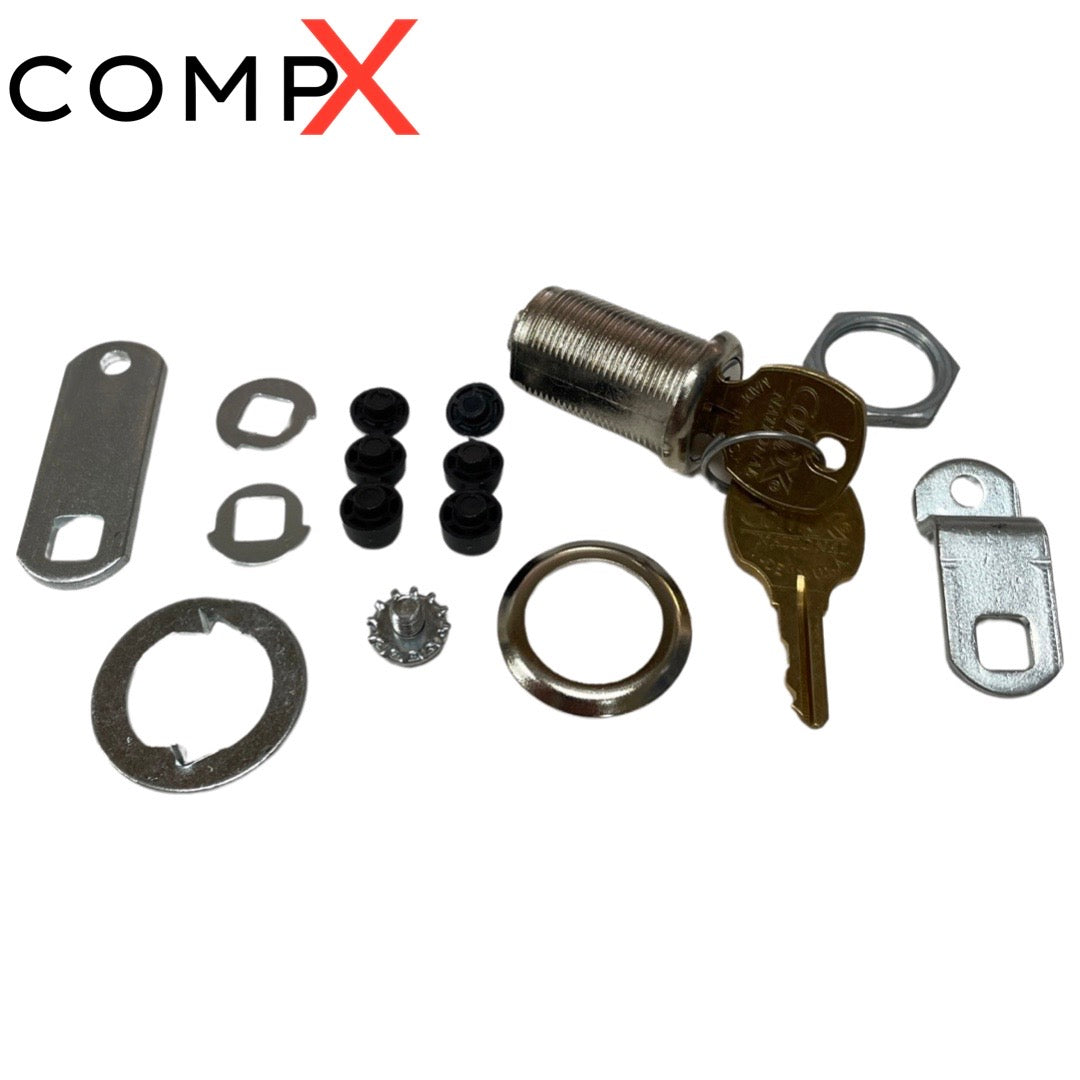

• Supplied with two keys, trim washer, spur washer (for wood), mounting nut, two cams and two stop washers
• For drawers, right-hand or left-hand doors
• Cams included for lipped/overlay construction (straight cam; 1-1/2" extension) or flush construction (formed cam; 1-1/8" extension, 11/32" offset)
• For overlay application, the combined thickness of front and frame cannot exceed the cylinder length listed below. To accommodate an overlay construction using a 3/4" front and a 3/4" frame, order the NLC8073 lock and the NLC7014-2C cam
• Stop washers provided for both 90° or 180° cam turns
• Key removable in both locked and unlocked positions
• Supplied with two keys, trim washer, spur washer (for wood), mounting nut, two cams and two stop washers
