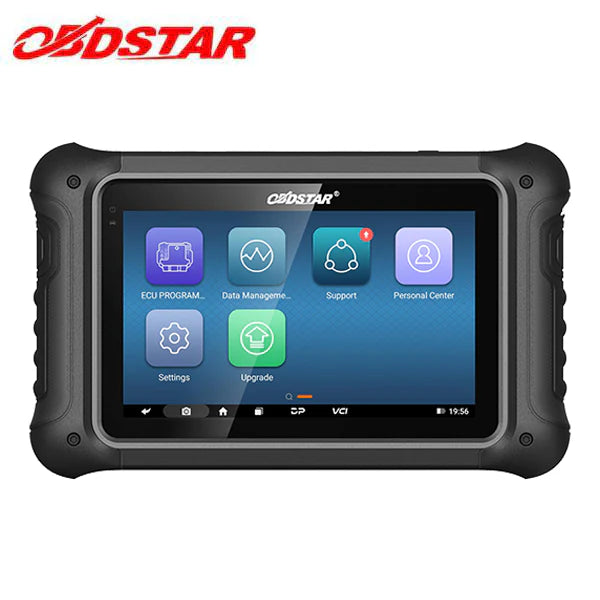

OBDStar - DC706 - ECU Tool Full Version - For Car & Motorcycle - ECM / TCM / Body Clone by OBD or Bench
OBDSTAR DC706 ECU tool is designed for vehicle ECM, TCM and body/other system for ECU programming. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO PIN code, ECU recovery and so on. It's all by OBD or BENCH mode and makes ECU cloning easy. Included with 1 year of updates free.
Does not clone VAG DQ250 before year 2008.

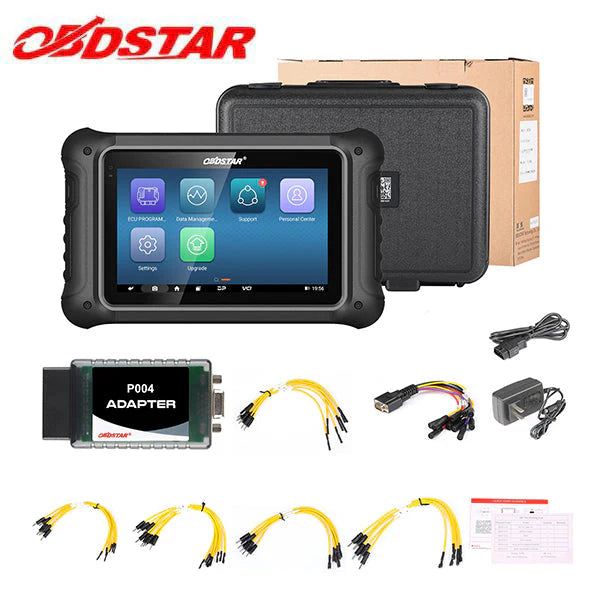

Included in the package:
- 1pc x DC706 Main Unit
- 1pc x Main cable
- 1pc x P004 adapter
- 1pc x P004 ECU clone jumper
- 1pc x 12V2A charger
Functions:
- ECU Clone/ All by OBD or Bench
- ECM clone for cars(Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens...)
- ECM clone for motorcycles(Bosch, Delphi, EFI...)
- TCM clone(Ac Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF...)
- Body/Other clone(FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR, PSA, SMART, VOLVO...)
- Description
Supported ECU Manufacturers
- ALPS
- Autoliv
- Bosch
- Continental
- Delphi
- Denso
- Johnson Controls
- Lear
- Magneti Marelli
- Siemens
- Temic
- Valeo
Car:
- ASTON MARTIN
- BMW
- FAW
- FCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT...)
- FORD/LINCOLN
- GM/OPEL
- HYUNDAI/KIA
- LAND ROVER/JAGUAR
- LUXGEN
- MASERATI
- MAZDA
- MITSUBISHI
- NISSAN
- OPEL
- PSA
- SMART
- SUBARU
- SUZUKI
- VOLVO
- VW/AUDI/SEAT/SKODA
Motorcycle:
- APRILIA
- BRP
- CFMOTO
- DERBI
- GILERA
- GUZZI
- PEUGEOT
- PIAGGIO
- QJBENELLI
- VESPA
Advanced Functions:
- R/W eeprom/dflash/pflash/Map, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery...
- Support 200+ ECM types(Partial functions require P003 adapter.)
- Support dozens of TCM types
- Support 100+ body/other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...)
- Support VW DQXXX (TCM) calibrate mileage
- Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
- Support motorcycle BRP ME17.8.5 ECU clone (works with P003 adapter)
- Support Piaggio series engine ECU clone(such as MIU G4 (M4G1))
- Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
- Support automatic identification
- Strong help data files
- All by OBD or Bench mode
DC706 Specifications:
|
Operation system |
Android 5.1.1 |
|
|
RK3128 quad-core ARM cortex A7 |
|
Battery |
3700mA, rechargeable polymer lithium battery |
|
Extension memory card |
32G micro SD (TF) card supported |
|
Storage capacity |
16GB |
|
LCD |
7.0 inch |
|
LCD resolution |
1024*600 |
|
Touch screen |
Capacitive touch screen |
| Wifi | Supported |
|
Working temperature |
-20℃~55℃ (14℉~131℉) |
|
Storage temperature |
-20℃~70℃ (-4℉~158℉) |
|
Weight |
About 1.3kg |
|
Dimension |
243mm*148mm*36mm |
