OBDStar - D800 - Marine Diagnostic Tool For Jet Ski / Outboard - 1 Year Of Free Updates

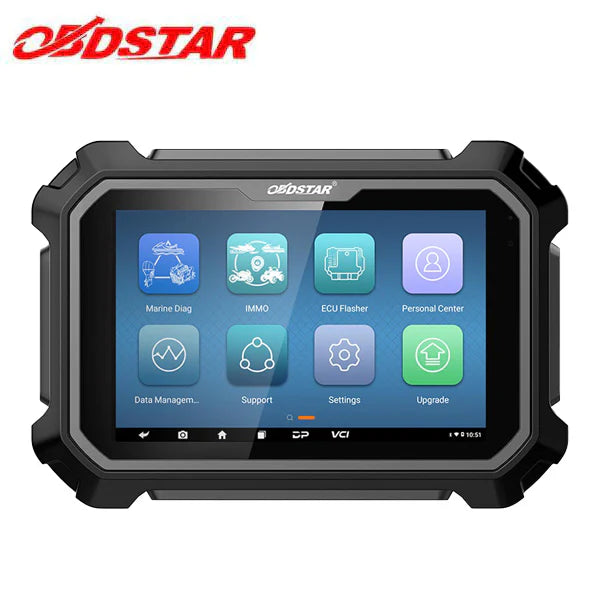

D800 is OBDSTAR's new generation device for marine intelligent diagnosis.
This is the D800 A+B Package (Jet Ski / Outboard)
Based on the Samsung Exynos processor, it is equipped with an 8-inch display screen, which is extremely fast and smooth. D800 adopts the latest 3.0 APK platform and has shortcut functions such as auto-identification, intelligent retrieval, and one-click feedback. The equipment, with its fast upgrade performance and built-in help materials, is a good helper for marine maintenance engineers!
Features:
- New Android 5.1.1 operation system
- Simple and intuitive menu guidance allows you to quickly master the equipment operation
- Provides complete diagnostic functions including ECU information, code reading, code clearing, data flow, freeze frames, action test, settings, coding ETC
- Record and playback real-time flow, quickly and accurately locate sensor and component faults
- WI-Fi connection to the internet, one-click software upgrade
- One-click remote function, OBDSTAR technical staff remote assistance
Specifications:
| Operation System | Android 5.1.1 |
| CPU | Exynos4418 qual core ARM cortex A9 |
| Battery | 3700mA, rechargeable polymer lithium battery |
| Extension memory card | 32G micro SD (TF) card supported |
| Storage capacity | 32GB |
| LCD | 8.0 inch |
| LCD Resolution | 1280 x 800 |
| Touch screen | Capacitive touch screen |
| Wifi | Supported |
| Camera | 5-megapixel rear view camera |
| Working Temperature | -10℃～55℃ (14℉～131℉) |
| Storage Temperature | -20℃～70℃ (-4℉～158℉) |
| Weight | 1kg (main unit) |
| Dimension | 254mm x 174mm x 35mm |

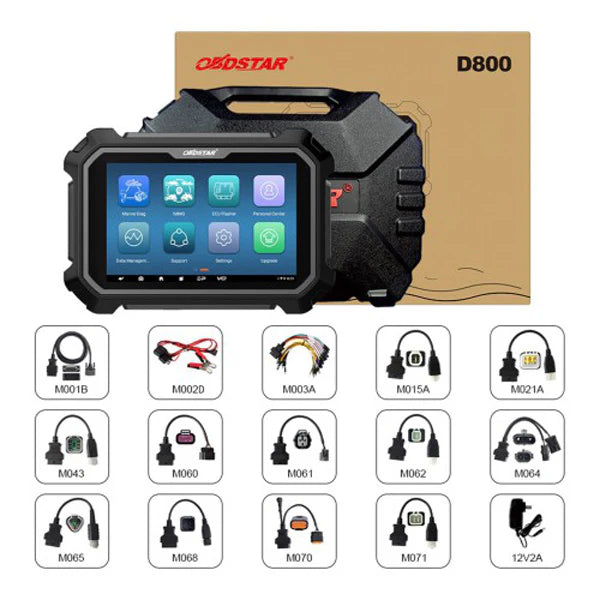

Package Entails:
- (1) M001B main cable
- (1) M002D 6 meters power cable
- (1) M003A Multi-functional jumper
- (1) M015A Honda
- (1) M021A Parsun
- (1) M043 BRP
- (1) M060 Mercury
- (1) M061 Yamaha
- (1) M062 Suzuki
- (1) M064 Mercury
- (1) M065 Evinrude
- (1) M068 Kawasaki
- (1) M070 Tohatsu
- (1) M071 Tohatsu
- (1) 12V2A charger
Advanced Features:
- The OBDSTAR mobile app Google Play Store and OBDSTAR mobile app Apple app store integrate functions such as diag socket location, flash code query, technical bulletin, manual service function (service lamp reset), basic parameters, etc., working with D800 to make marine diagnostics more accurate and efficient (some functions are only available for D800 users to check for free)
- The exclusive interactive wiring diagram and electrical appliance description query function function make your diagnosis worry-free;
- Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyze faults;
- Auto scan, active trim configuration, Active trim GPS configuration, Auxiliary Joystick Configuration, BCM Simulator, Compass COnfiguration, Device initialization, drive alignment, helm setup, instance setting, maintenance setting, merc TDS reset, remote control reset, set engine location, set tach link, set tilt limit, SMUX Configuration, Steering wheel centering, system calibration, torque adjustment, trackpad configuration, vessel personality, and other functions
Supported Brands:
Evinrude, Kawasaki, Parsun, Suzuki, Hidea, Mariner, Sea-Doo(BRP), Tohatsu, Honda, Mercury / Mercury Racing, Selva Marine, Yamaha, Johnson, Seven Marine
Optional Brands:
Caterpillar, Cummins Mercruiser Diesel, FNM Marine, Hyundai Seasall, Kodiak Marine, Malibu, Panther Airboats, Scania Marine, VM Motori, CFmoto, Ilmor, Kohler Power Systems, Man Marine, Perkins, Sisu, Volvo Penta, Crusader Engines, Daedong, FPT(Fiat Powertrain technologies), Indmar, Marine Power, PCM Marine Engines, Steyr Motors, Yanmar, Cummins Marine, DAF Marine, John Deere Marine, Lombardini Marine, MTU, Perkins, Toyota Marine, Volkswagen Marine (More Functions are under development) (Model Softwares vary with different configurations, please consult OBDSTAR's customer service or agent for details. And the final interpretation right belongs to OBDSTAR)
