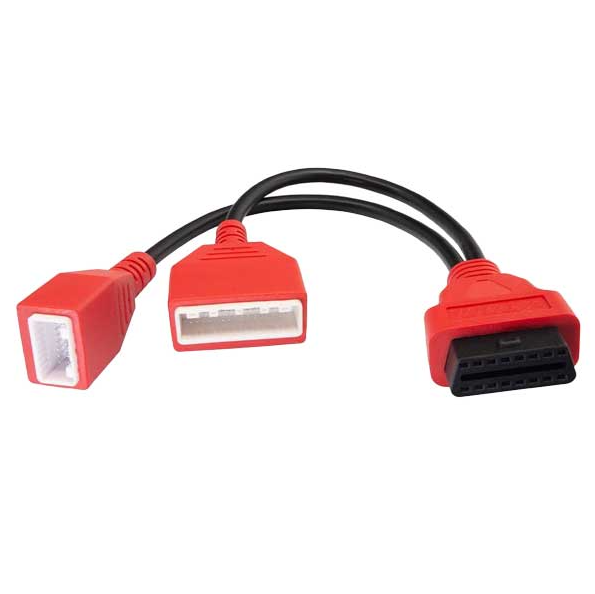

Nissan 16 + 32G Bypass Cable with CGW Adaptor
The 2020+ Nissan Sentra 16 + 32G Bypass Cable allows compatible automotive diagnostic and key-programming tools to bypass the vehicle’s security gateway module. It intercepts the programmer’s CAN High and CAN Low signals and routes them through the vehicle’s 16-pin and 32-pin connectors.
This direct connection provides access to supported modules on the CAN network for diagnostics, key programming, bidirectional controls, maintenance functions, and live data monitoring.
Features:
Compatible with 2020 and newer Nissan Sentra models
Works with most transponder programmers that support these vehicles
Compatible with Autel MaxiSYS diagnostic tablets and MaxiIM key-programming tablets
Bypasses the vehicle’s security gateway module
Supports reading and erasing available system modules
Enables bidirectional active tests and maintenance functions
Supports adding keys with compatible IMMO tools
Supports IMMO component replacement and immobilizer status scanning
Provides an OE-style connection without back-probing wires
Allows compatible tools to display and graph live vehicle data
Compatible with the following:
- 2020 - 2022 Nissan Sentra
How to Use:
- Plug the main cable of your programmer of choice into the female OBD port of the adapter.
- Locate the security gateway module on the vehicle. Located under the drivers dash.
- Locate and unplug the connectors currently plugged into the module. Plug in the 16+32 connectors directly into the module.
- Use your programmer of choice to select by vehicle or system type and program like normal.
