Narrow-Stile - Latch Lock Body - Deadlatch - 1-1/2

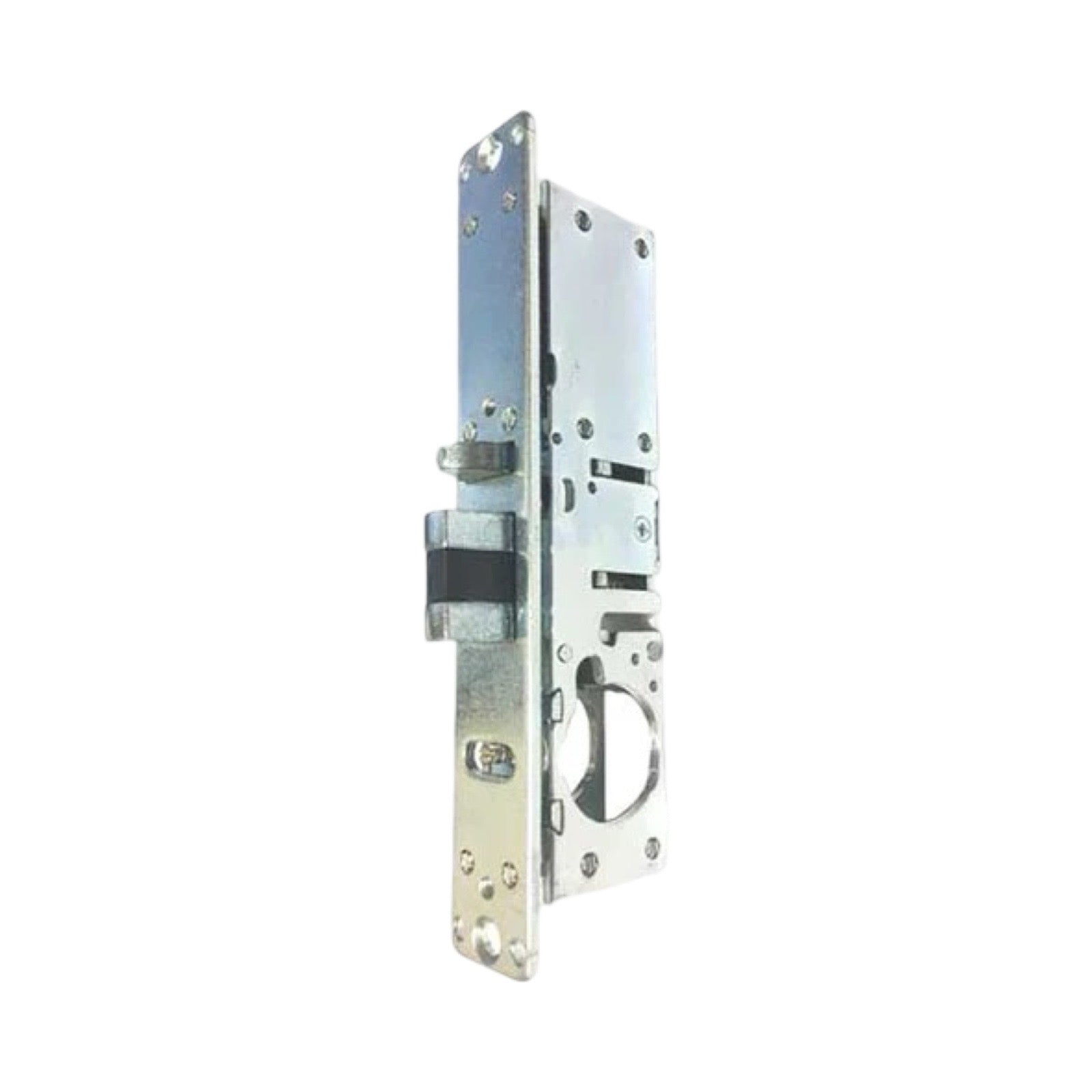

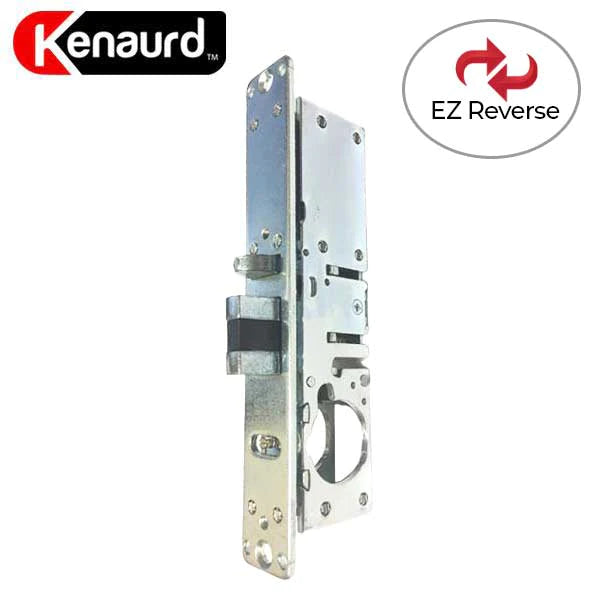

Narrow-Stile - Latch Lock Body - Deadlatch - 1-1/2" - With 2 Faceplates & EZ Reverse

$15.00 In Stock Sold out
SKU: NAR-NS-2834
  • Description

Backset 1-1/2" [28.6 mm]
Handing EZ Reverse System - Flip from LH to RH in seconds
Case Zinc Plated Steel lock body
Case Dimensions: 7/8" width x 6" Length
Cylinder: Accepts standard 1" to 1-1/2" Mortise Thumbturns and 1" to 1-1/2" Mortise Lock Cylinders with Adams Rite (A/R) cams. (Cylinder Not Included)

Latch 13mm chrome plated with delrin insert for quiet latching

1/2" width x 1.0" length x 1/2" Throw

Auxiliary Linchpin Steel. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
Faceplate Measures 1" x 6-7/8" [25.4 mm x 174.6 mm].
Strike Standard strike furnished for flat jamb where door closes flush or nearly flush.
Standard Package

Individually boxed with strike plate, 2 faceplates, and mounting screws.

Available in 25 Count Carton / Box

Cylinders, paddles, handles available separately.
