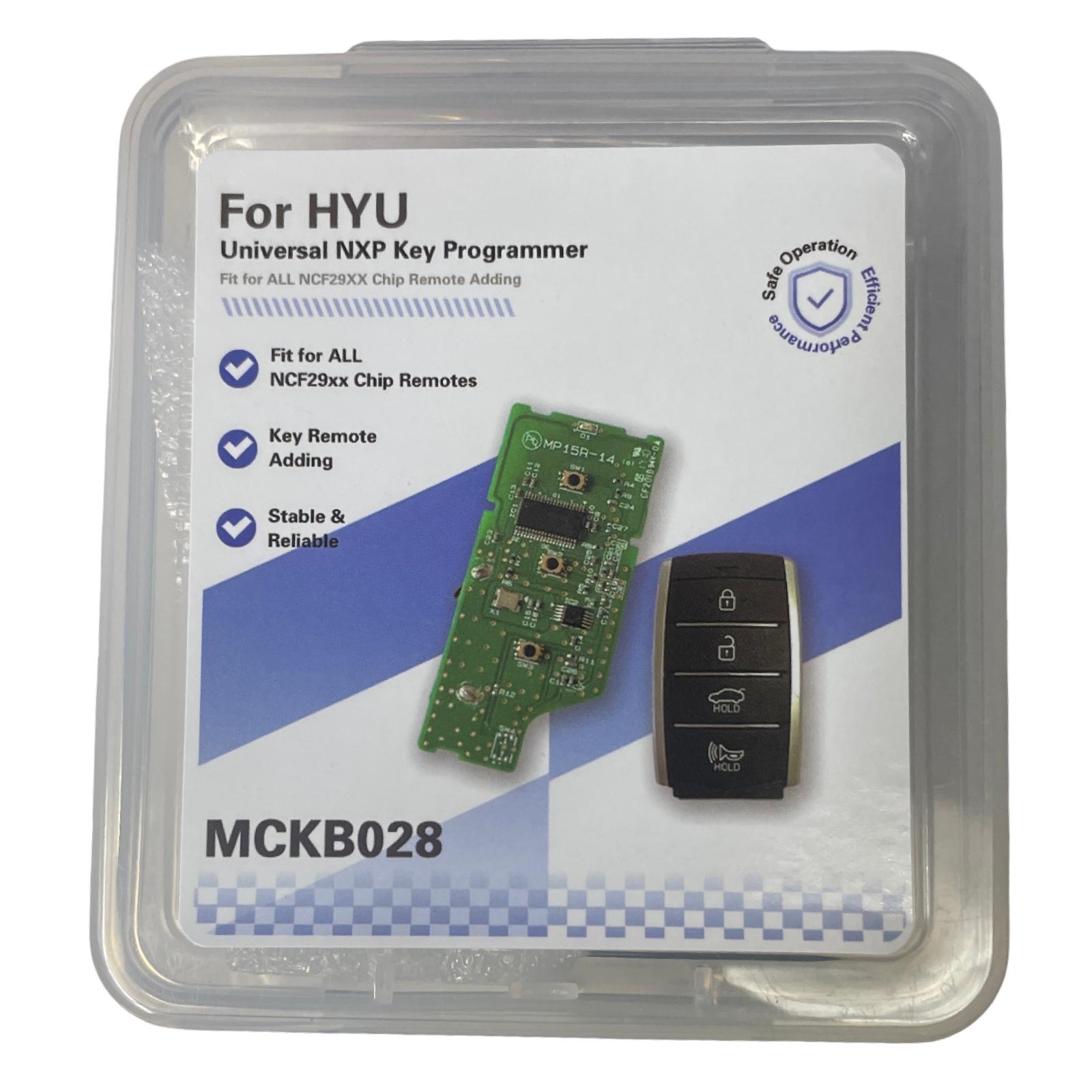

MCKB028 / NXP Key Programmer for Hyundai Genesis / Remote Adding Tool
Specifications
Part number: MCKB028
Board version: 28-V1.0
Product type: Solder-free smart-key PCB adapter
Compatible programmer: NXP Killer and other supported NXP smart-key programmers
Key configuration: Four-button smart key
Supported functions: Chip reading, writing and remote adding

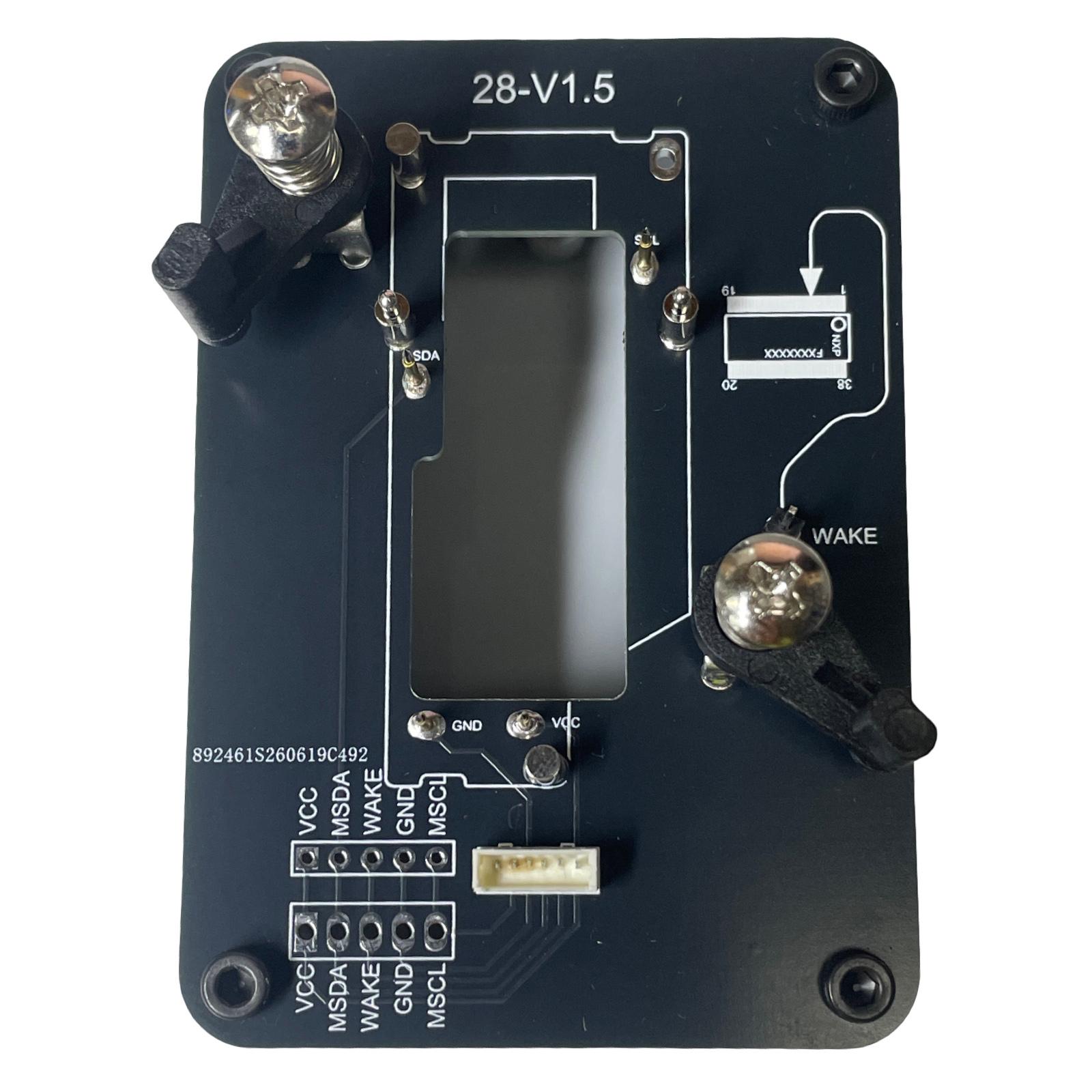

Connection method: Gold-plated pogo-pin contact
PCB retention: Spring-loaded clamps
Soldering required: No
Labeled pins: MSCL, GND, WAKE, MSDA and VCC
Test points: SDA, SCL, GND and VCC
Connector: Multi-pin programmer cable socket
Reusable: Yes
The MCKB028 is a universal NXP key programming adapter designed for adding compatible smart remotes to Hyundai vehicles. It provides a secure, direct connection between the remote’s circuit board and your key programming tool for faster, more reliable programming.
Target Vehicle Platform Compatibility:
- Brand: Hyundai/Genesis
- Platform: Genesis four-button smart key
- Model years: 2019–2020
Transponder Chip Compatibility:
- NXP NCF29XX
- Transponder technology: Hitag AES / ID4A
- Supports compatible original and aftermarket NCF29XX smart-key PCBs
Important: Compatibility must be verified by matching the original PCB layout to the MCKB028 adapter.
Verify the remote’s circuit-board design and chip type before ordering. Vehicle model and year alone do not guarantee compatibility.
