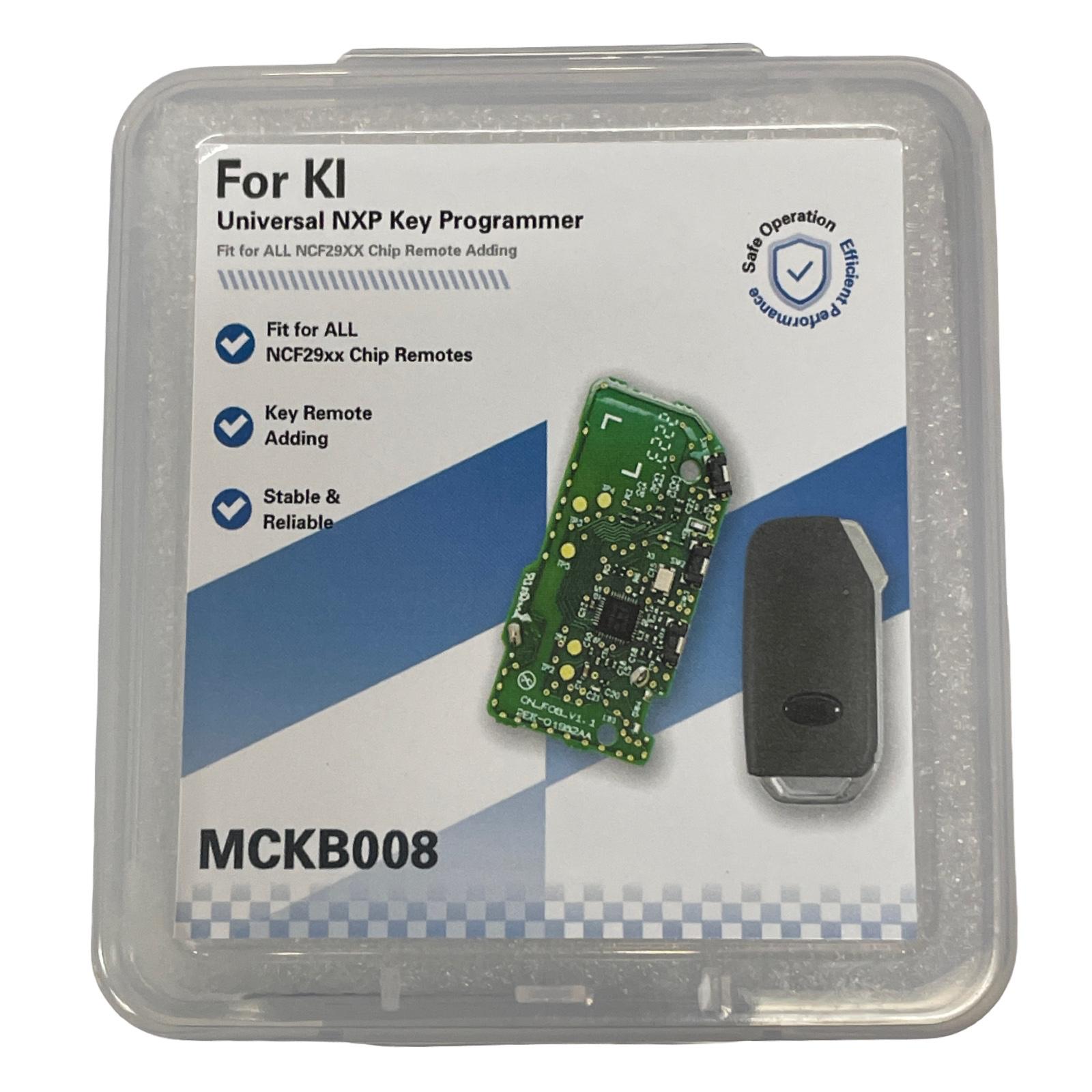

MCKB008 / NXP Key Programmer For Kia / Remote Adding Tool
Part number: MCKB008
Board version: 08-QY-V1.11
Product type: Solder-free smart-key PCB adapter
Compatible programmer: NXP Killer / Super NXP Killer
Target platform: Kia NCF29XX proximity smart keys
Supported functions: Key adding, reading, writing, resetting, unlocking and cloning where supported
Connection method: Spring-loaded gold-plated pogo pins
PCB retention: Two adjustable screw clamps
Soldering required: No
Labeled pins: MSCL, GND, WAKE, MSDA and VCC
Contact markings: SCL, SDA, GND and VCC
Additional connection: Multi-pin ribbon-harness socket
WAKE probe: Supported
Reusable: Yes
The MCKB008 is a universal NXP key programming adapter designed for adding compatible smart remotes to Kia vehicles. It provides a secure, direct connection between the remote’s circuit board and your key programming tool for faster, more reliable programming.
MCKB008 Chip Compatibility
- Chip family: NXP NCF29XX
- Transponder technology: Hitag AES / ID4A
- Supports compatible original and aftermarket NCF29XX smart-key PCBs
Vehicle Compatibility
- Brand: Kia
- Published years: 2018–2022
- Key platform: Three-side-button proximity smart key
Important: Compatibility must be verified by matching the original PCB layout to the MCKB002 adapter.
Verify the remote’s circuit-board design and chip type before ordering. Vehicle model and year alone do not guarantee compatibility.
