MCKB005 / NXP Key Programmer for Toyota / Remote Adding Tool

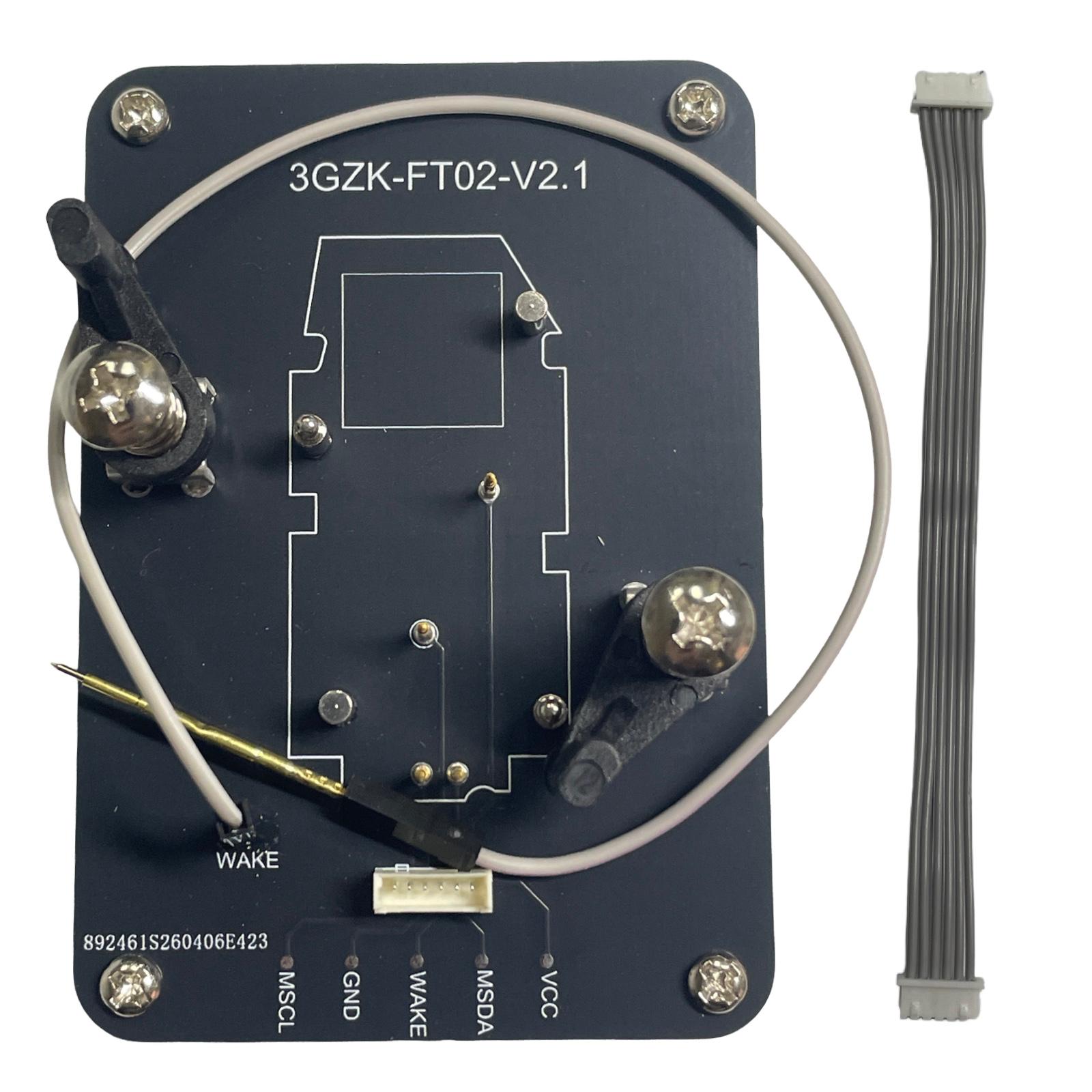

The MCKB005 is a specialized, solder-free workbench breakout adapter engineered specifically for Toyota smart keys. It is often categorized as an "older-style" adapter layout compared to the MCKB007, tailored to accommodate the PCB footprints of standard Toyota proximity remotes.

FCC ID Information

No official FCC ID list has been confirmed for the MCKB005. Toyota used several remote versions during these years, so compatibility should be determined by the NCF29xx chip and PCB layout rather than the FCC ID alone.

Specifications

Part Number: MCKB005

Application: Toyota smart-key remotes

Approximate Model Years: 2018–2022

Remote Style: Select 4-button smart remotes

Supported Chip Series: NXP NCF29xx

Board Version: 05-FT02-V3.0

Connection Type: Direct, solder-free PCB contact

Contact Points: VCC, MSDA, WAKE, GND, and MSCL

Contact Method: Gold-plated, spring-loaded pogo pins

Holding Mechanism: Two adjustable screw clamps

Additional Connections: Dual labeled pin headers and ribbon-cable connector

Primary Functions: Reading, writing, unlocking, cloning, and remote adding when supported by the connected tool

Required Equipment: Compatible NXP key programming device

Condition: New

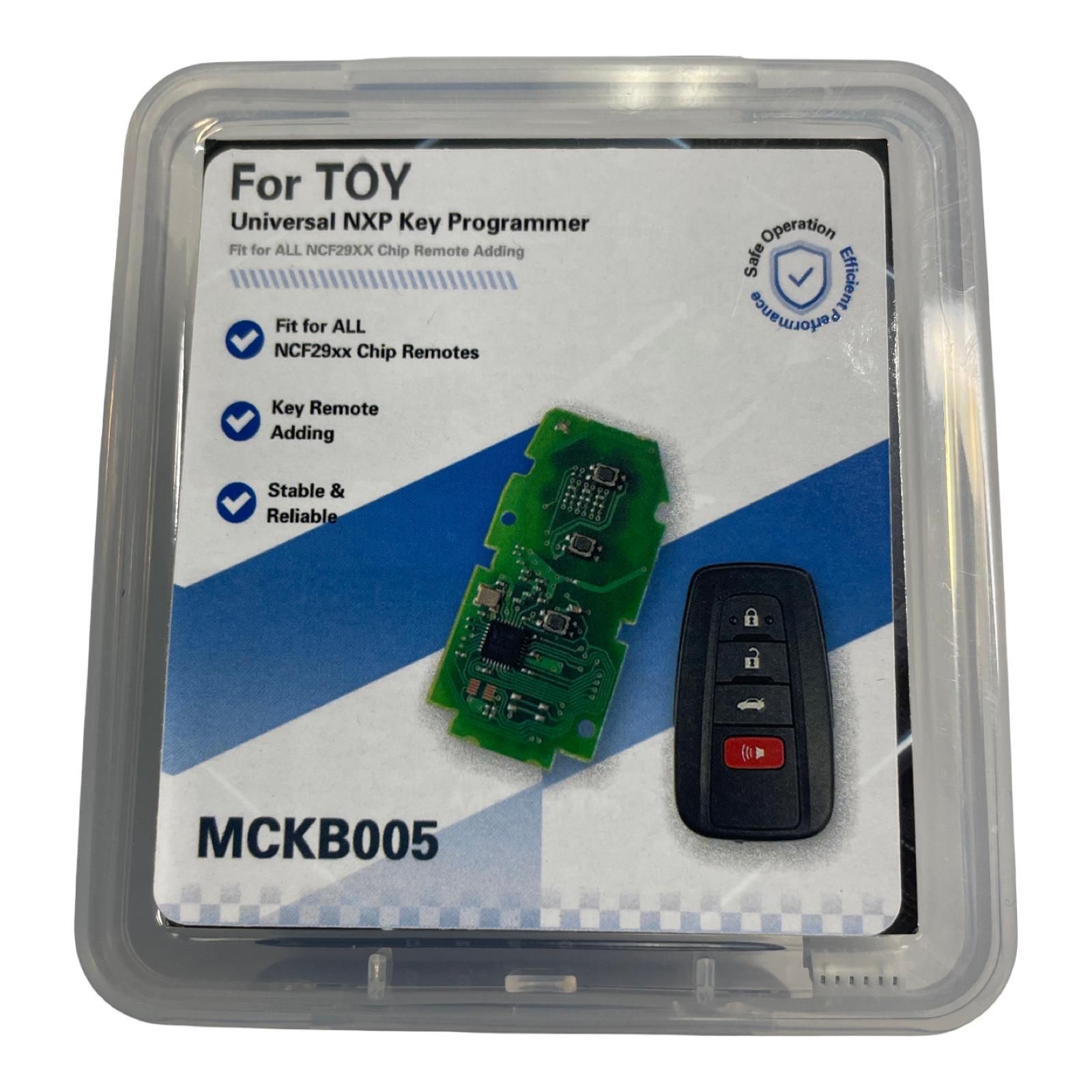

Package Includes: One MCKB005 Toyota smart-key adapter board

Please Note: Compatibility depends on the remote’s NCF29xx chip and circuit-board layout. Model year, vehicle model, FCC ID, frequency, or button configuration alone does not guarantee compatibility. The programming device and smart remote are sold separately.
