MCKB015 / NXP Key Programmer for Dodge Ram / Remote Adding Tool
Specifications
Part Number: MCKB015
Application: Dodge Ram smart-key remotes
Approximate Model Years: 2019–2024
Supported Buttons: 3, 4, 5, and 6-button configurations
Supported Chip Series: NXP NCF29xx
Board Version: 15-DQ-V4.0
Connection Type: Direct, solder-free PCB contact
Contact Points: VCC, MSDA, WAKE, GND, and MSCL
Contact Method: Gold-plated, spring-loaded pogo pins
Holding Mechanism: Adjustable spring-loaded clamps
Primary Functions: Chip reading, writing, unlocking, cloning, and remote adding when supported by the connected tool
Compatible Tools: NXP-compatible programmers, including supported KYDZ, KeyDIY, VVDI, and similar devices
Condition: New

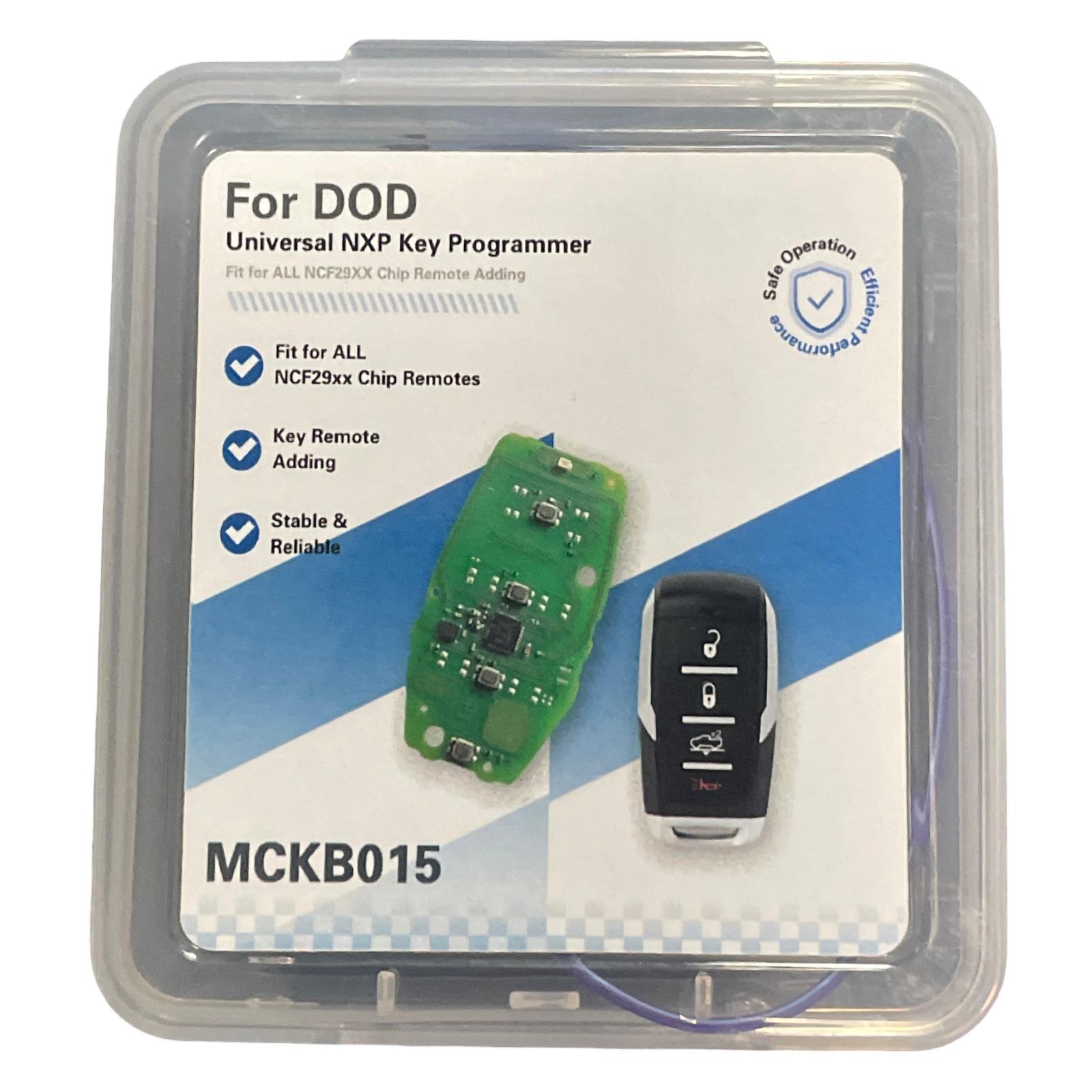

Package Includes: One MCKB015 Dodge Ram NXP smart-key adapter
Please Note: Compatibility depends on the remote’s NCF29xx chip and circuit-board layout. Vehicle year, model, button configuration, or FCC ID alone does not guarantee compatibility. The programming device and smart remote are sold separately.
Target Vehicle Platform Compatibility:
The MCKB015 adapter is built natively for the following platforms:
- Dodge (Modern smart key remotes)
- Ram (Specifically heavy-duty and light-duty Ram trucks using modern sleek proximity fobs)
Transponder Chip Compatibility:
The pogo-pin architecture on this workboard is universally aligned to interface with the security data lines of the following transponder chip families:
- NXP NCF29XX Series (Including NCF29A1, NCF29A2, NCF2951, etc.)
