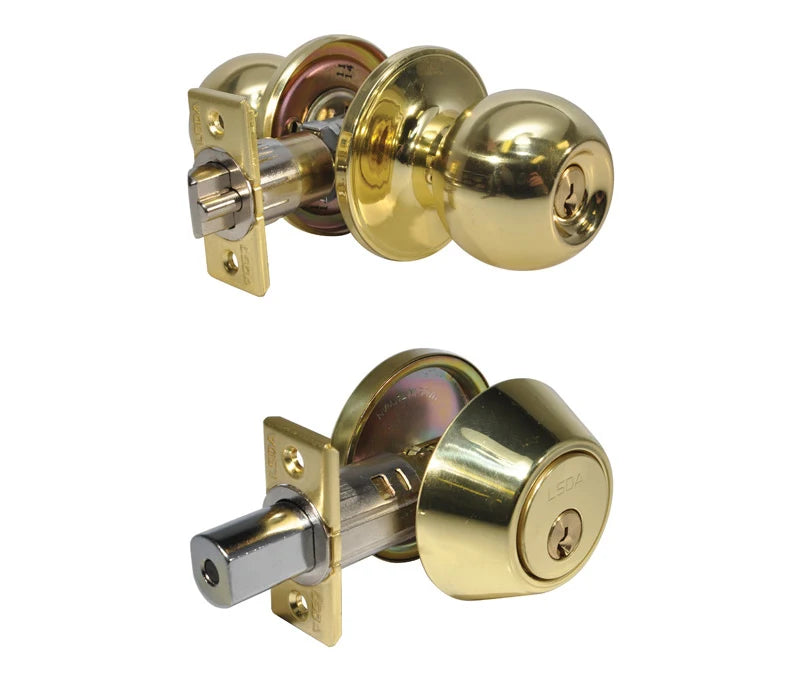

LSDA Combination 00 Ball Knob Plus Single Cylinder SC1 Deadbolt – Bright Brass
The 03-Series combines a tubular knob lock with a single or double cylinder deadbolt. Both locks are keyed to the same key for convenience and ease of installation. These locks are recommended for use on exterior doors.
Typical applications include Houses and Apartments.
- Description
Grade: | Grade 3, Residential | |
Function: | Entry Knob with Single Cylinder Deadbolt | |
Finish: | US3/605 Bright Brass | |
Design Style: | Ball (B) Round Knob | |
Cylinder: | SC1, 5-Pin, knob and deadbolt are KA, KA20 | |
Latch: | Adjustable 2-3/8″ to 2-3/4″ backset deadlatch with full 1/2″ latch projection;
Deadbolt latch is 1″ throw deadbolt with anti-saw rod |
|
Door Thickness: | 1-3/8″ – 1-3/4″ | |
Door Prep: | Knob lock -2-1/8″ diameter cross bore; 1″ edge bore; Deadbolt -1-1/2″ or 2-1/8″ diameter cross bore; 1″ edge bore | |
Handing: | Non-Handed | |
Standards: | ANSI/BHMA 156.2 Series 4000, Grade 3 |
