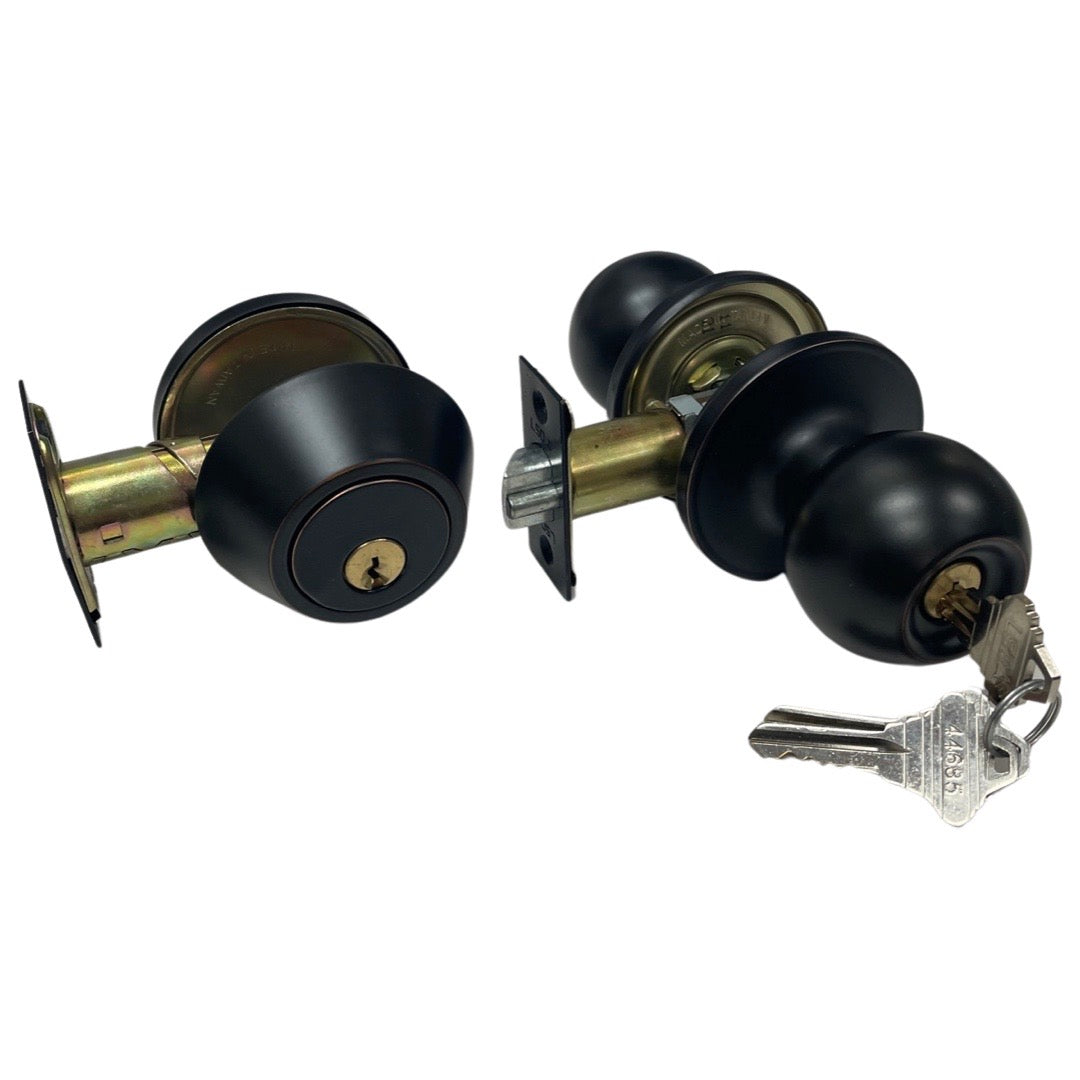

LSDA Combination 00 Ball Knob Plus Single Cylinder SC1 Deadbolt – Aged Bronze

LSDA Combination 00 Ball Knob Plus Single Cylinder SC1 Deadbolt – Aged Bronze

The 03-Series combines a tubular knob lock with a single or double cylinder deadbolt. Both locks are keyed to the same key for convenience and ease of installation. These locks are recommended for use on exterior doors.

Typical applications include Houses and Apartments.

$29.95 In Stock Sold out
SKU: LSD-2650
  • Description
Grade: Grade 3, Residential
Function: Entry Knob with Single Cylinder Deadbolt
Finish: US11P/716 Aged Bronze
Design Style: Ball (B) Round Knob
Cylinder: KW1, 5-Pin, knob and deadbolt are KA, KA20
Latch: Adjustable 2-3/8″ to 2-3/4″ backset deadlatch with full 1/2″ latch projection;



Deadbolt latch is 1″ throw deadbolt with anti-saw rod

Door Thickness: 1-3/8″ – 1-3/4″
Door Prep: Knob lock -2-1/8″ diameter cross bore; 1″ edge bore; Deadbolt -1-1/2″ or 2-1/8″ diameter cross bore; 1″ edge bore
Handing: Non-Handed
Standards: ANSI/BHMA 156.2 Series 4000, Grade 3
