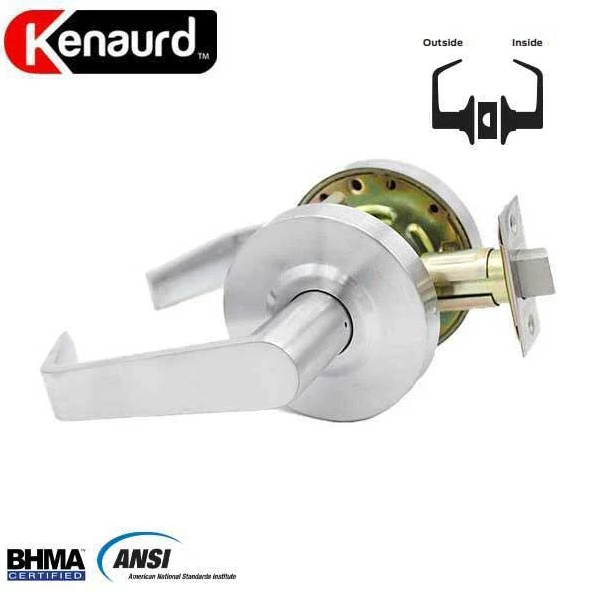

Commercial Lever Set Handle / 2-3/4” Standard Backset / Satin Chrome / Passage / Grade 2

Lock Function: ANSI F75 Passage lock
Handing: Non-Handed
Door Thickness: 1-5/8” to 1-7/8”
Backset: 2 3/4" (70 mm) standard

Latch: 11-096 Deadlatch 1/2" (13 mm) throw
HSG diameter:1" (25 mm)
Levers: Rigid Lever - Pressure cast zinc
Thru Bolts: Removable thru-bolts fit existing preps like Schlage, Best, Yale, Corbin Russwin, Sargent, Arrow, and more
Strike: 10-025 1 3⁄16", 1 3⁄8" (30 mm, 35 mm) 1 1 ⁄4"x 47 ⁄8" (32 mm x 124 mm) ANSI
Finish: 626 - 26D - Satin Chrome
Certifications: Exceed ANSI A156.2 Grade 2 locked lever torque requirement.
Tested to exceed 4,000,000 cycles, ANSI Grade 2 requirement
BHMA Certified
Manufacturer Warranty: Limited lifetime mechanical warranty
