ALOA Lock50 / HW04-A+ Alarm Off / OBD Programming and RFA Replacement Package
ALOA Bonus extra year subscription- 2 years total - ends 6/28/26
Jaguar & Land Rover Key Programming System
The Lock50 HW04-A+ Package is built for automotive locksmiths who want to start offering Jaguar and Land Rover key programming with added RFA replacement capability when the BCM is unlocked.
The HW04-A+ provides a strong JLR workflow for OBD key programming, key erase, Alarm Off on unlocked RFA vehicles, RFA replacement when the BCM is unlocked, and key generation using OEM, aftermarket, Lock50, and cloneable key options where supported.
For locked-module situations, additional service-mode or token-based workflows may be available depending on the vehicle condition and required procedure. When service mode is available, no token may be required. If the car is not in Alarm mode and the BCM is unlocked, module change as opposed to token should be available.
For locksmiths who want more than the entry A package but do not need the full C-package workflow, HW04-A+ gives you a practical middle step: strong key programming capability plus the ability to handle RFA replacement scenarios when the BCM is unlocked.
Quick Summary
- Jaguar and Land Rover key programming package with RFA replacement capability
- Pathway to make keys for supported 2016+ Jaguar and Land Rover vehicles
- OBD key programming on supported vehicles
- Key add capability
- Key erase capability (unlocked RFA)
- Alarm Off on unlocked RFA vehicles
- Alarm Off by service mode or token (on locked RFA)
- RFA replacement when the BCM is unlocked
- Compatible with OEM, aftermarket, Lock50, and clonable key workflows where supported
- Token or service mode pathway for locked-RFA situations
- Token-based workflows available for certain advanced locked-module situations
- Does not include the same no-key-programming-token locked-module workflow as the HW04-C package
- Can load tokens to machine for faster workflows

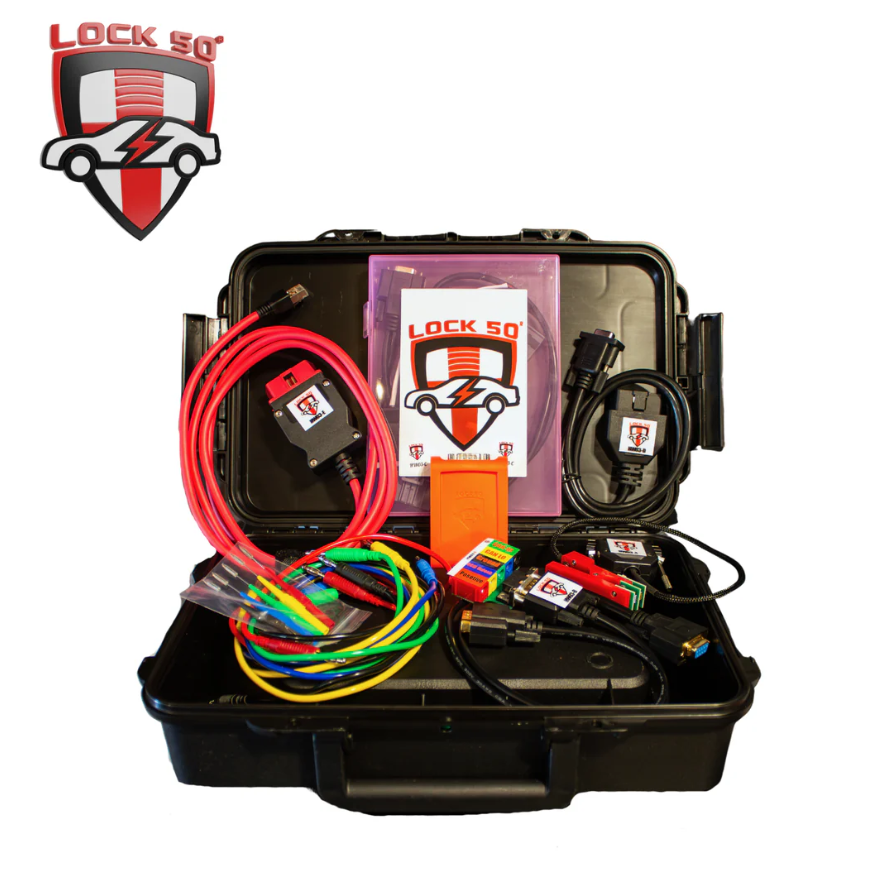

Package Includes
- Lock50 HW04 main interface
- USB-C cable
- HW03-D OBD cable
- HW03 adapter set
- HW03-B CAN wire Alarm Off adapter
- HW03-C adapter, M1 & M2
- 1 HW14 key
- Adapter set
- HW04-A+ software access
What the HW04-A+ Does
- Programs Jaguar and Land Rover smart keys through OBD
- Adds and erases smart keys on supported JLR vehicles
- Performs Alarm Off on unlocked RFA vehicles
- Supports Alarm Off on locked RFA situations through service mode or token-based workflows where applicable
- Supports RFA replacement when the BCM is unlocked
- Helps resolve damaged or replaced RFA module scenarios
- Supports OEM, aftermarket, Lock50, and clonable key workflows where supported
- Supports key programming on many PEPS and non-PEPS smart key systems
- Provides token-based pathways for certain locked-module situations
- Helps locksmiths take on JLR jobs that standard key programmers may not support
Supported Use Cases
The HW04-A+ Package is designed for supported Jaguar and Land Rover vehicles equipped with PEPS and non-PEPS smart key systems.
Common use cases include:
- Add key programming when the RFA is unlocked
- Key erase when the RFA is unlocked
- Alarm Off on unlocked RFA vehicles
- OBD key programming on supported JLR vehicles
- RFA replacement when the BCM is unlocked
- Damaged RFA replacement when the BCM is unlocked
- Replaced RFA module programming when the BCM is unlocked
- OEM key programming on supported vehicles
- Aftermarket key programming on supported vehicles
- Lock50 key workflows where supported
- Clonable key workflows where supported
- Locked-RFA situations where the customer can place the vehicle in service mode
- Token-based key cloning when the RFA is locked and service mode is not available
- Token-based workflows for certain advanced locked-module situations
Key Compatibility
The HW04-A+ supports multiple key options depending on the vehicle, workflow, and module condition.
Supported key types include:
- OEM PEPS keys
- OEM non-PEPS keys
- New or used OEM keys where supported
- Lock50 HW14 keys
- Lock50 HW18 keys where applicable
- Aftermarket key workflows where supported
- Clonable key workflows where supported
- When UWB is disabled by software on supported vehicles, proximity and remote functions remain operational.
RFA Replacement & Token Workflow Notes
The correct workflow depends on the condition of the vehicle.
- If the RFA is unlocked, the HW04-A+ can support OBD key programming, key erase, and Alarm Off on supported vehicles.
- If the RFA needs to be replaced and the BCM is unlocked, the HW04-A+ can support RFA replacement workflows.
- If the RFA is locked, the customer may be able to place the vehicle in service mode, depending on the vehicle and situation.
- If the RFA is locked and service mode is not available, token-based key cloning may be required.
- Certain advanced locked-module workflows may be available through token use, depending on the vehicle and procedure.
- The HW04-A+ does not include the same no-key-programming-token locked-module workflow as the HW04-C package.
