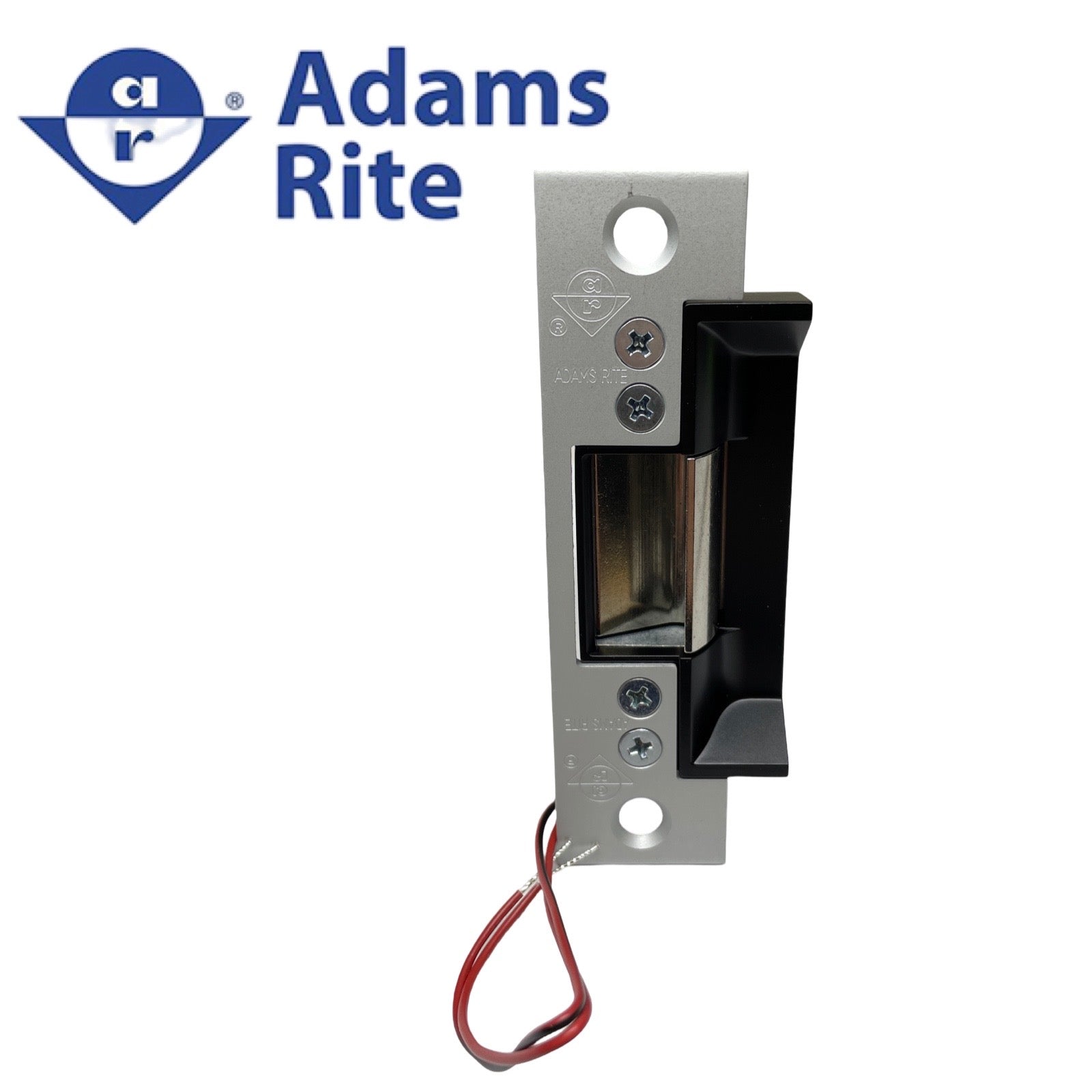

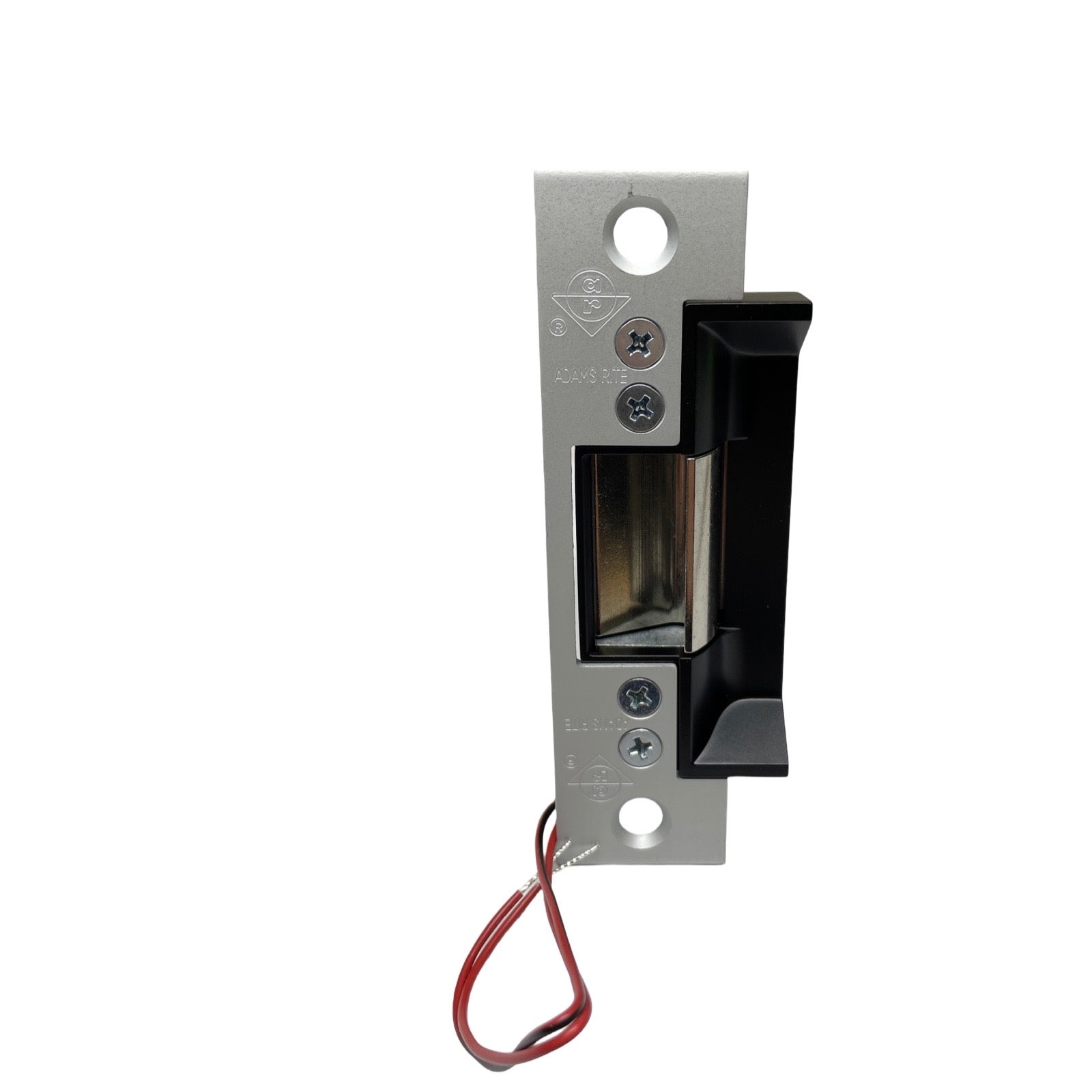

Adams Rite - 7140 - Electric Strike For Adams Rite & Cylindrical Locks - Anodized Aluminum - Fail Secure - 1-1/4" X 4-7/8" Flat Square Plate - 12VDC
The 7100 Series - Electric Strike designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" [12.7 mm] to 5/8" [15.9 mm] latch bolt projection.
For use in aluminum, hollow metal, or wood applications.
Remote electrical control of any door equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical lockset with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latch bolt so the door may be opened without operating the latch itself
Features
| Certifications | UL 1034 burglary-resistant listed UL 294 (6th Edition) listed |
| Case |
1" x 3-3/8" x 1-5/8" deep [25.4 mm x 85.7 mm x 41.3 mm deep]. |
| Strike Opening | 5/8" x 1-7/16" x 1/2" deep [15.9 mm x 36.5 mm x 12.7 mm deep]. Bolt retaining keeper is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches. |
| Strike Lip |
Standard size: 36" [914.4 mm] Standard width bars can be field cut to the next smallest opening width. Basic strike has lip of proper length for 1-3/4" [44.5 mm] thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number. Note: Lip extension kits not available on 7101 or 7131. |
| Latchbolt Projection | 1/2" to 5/8" [12.7 mm to 15.9 mm] |
| Faceplate | 1-1/4" x 4-7/8" [31.8 mm x 123.8 mm] Flat with square corners |
| Voltage |
12 Volt DC. DC continuous units are silent, AC
|
| Current Draw | 0.33A at 12 VDC |
| Fail Safe | Fail Secure | Standard Configuration /Fail-Secure - Field selectable at time of installation. |
