OBDStar - P50 - Airbag Reset Tool - 5" Touchscreen - Read/Write - EEPROM

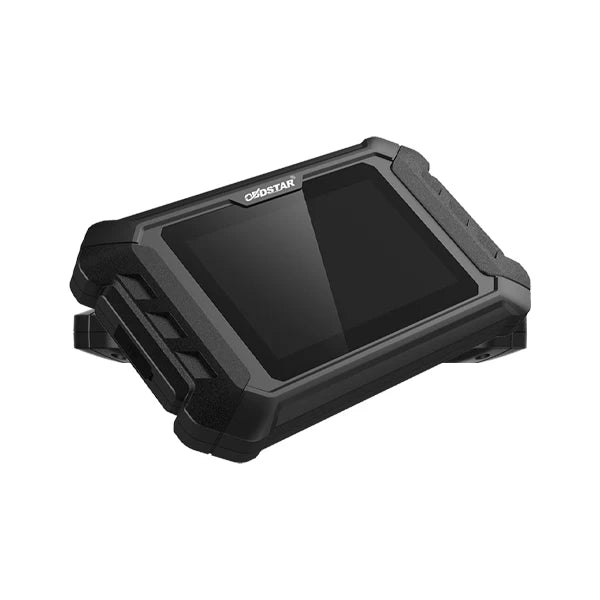

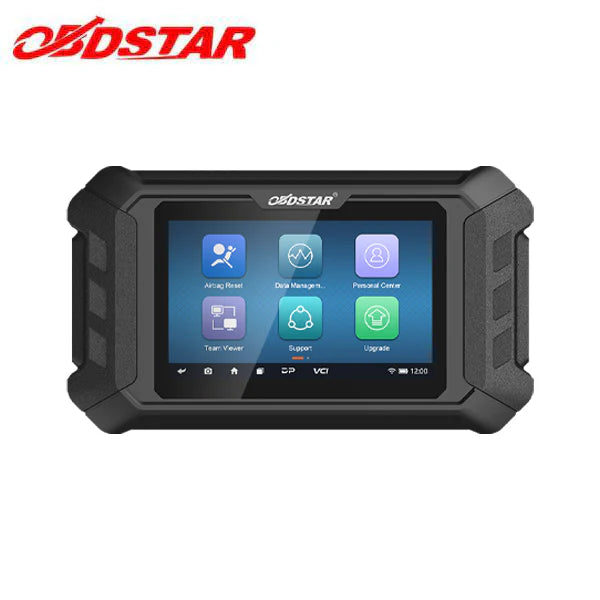

P50 is the new generation of intelligent airbag reset equipment of OBDSTAR Technology Co., Ltd. It's with powerful function and wide coverage, covering 38 brands and over 3000 ECU part No., some MCU. It's based on RK3128 Quad-Core processor, extremely fast and smooth; equipped with 5-inch capacitive touch screen, touch sensitive.
Benefits and Features:
- Turn on or off 120Ω resistance at any time for CANBUS ECU
- Supports 6&14 and 3&11 CANBUS communication at the same time
- Supports GM Single CAN(GM SCAN)
- Supports K communication
- P004 jumper can connect with multiple wires at the same time, make wiring clearer and easier
- DB15 connector can communicate with any OBDII-16 I/O interface
- Supports one-click airbag reset for 38 brands and over 3000 ECU part No.
- Supports fuzzy search for ECU part No.
- Contains clear BENCH mode wiring diagram
- Contains powerful and complete description files for fault code
- Advanced functions such as Read DTC, Erase DTC, Read EEPROM, Write EEPROM, Read Flash, Write Flash, Erase Crash, Write VIN.
- More functions in developing
$534.00
In Stock
Sold out
SKU: OBD-4193
- Description
Specifications:
| Operation system |
Android 5.1.1 |
| CPU | RK3128 quad-core ARM cortex A7 |
| Battery | 2600mA, rechargeable polymer lithium battery |
| Extension memory card |
32G micro SD (TF) card supported |
| Storage capacity |
16GB |
| LCD |
5.0 inch |
| LCD resolution |
800*480 |
| Touch screen |
Capacitive touch screen |
| Wifi | Supported |
| Working temperature |
-20℃ ~ 55℃（14℉ ~ 131℉ ） |
| Storage temperature |
-20℃ ~ 70℃（-4℉ ~ 158℉ ） |
| Weight | About 700g |
| Dimension | 198mm*115*mm*31mm |
